Stereo Radio Recorder AW7324 /00 /05
Philips 飞利浦; China
- Country
- People's Republic of China
- Manufacturer / Brand
- Philips 飞利浦; China
- Year
- 1991 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 289342
Bild aus osta-ee-46999195-kotmajak.
Bild aus osta-ee-46999195-kotmajak.

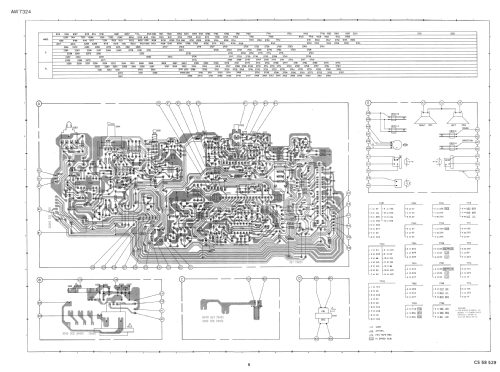

Bild aus servicedoku.

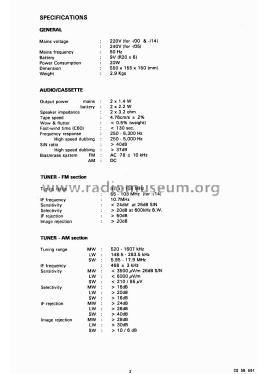

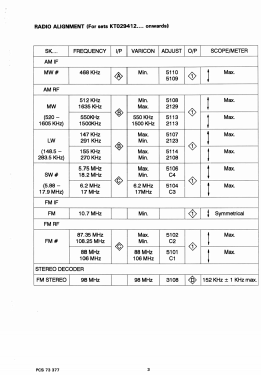

Source: Service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 468/10700 kHz
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Line / Batteries (any type) / 220; 240 / 6 x 1,5 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Stereo Radio Recorder AW7324 /00 /05 - Philips 飞利浦; China
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 550 x 155 x 150 mm / 21.7 x 6.1 x 5.9 inch
- Notes
-

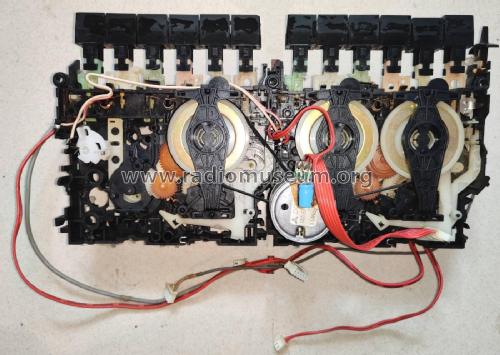

Doppelcassettenlaufwerk mit Autoreverse.

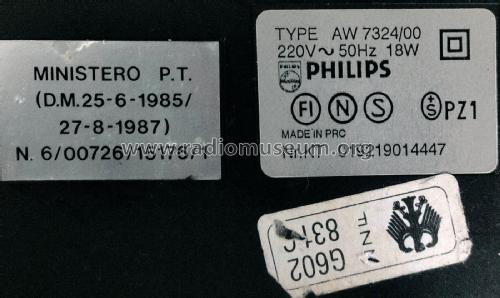

Ausführung .../00 für 220 Volt; .../05 für 240 Volt.
- Net weight (2.2 lb = 1 kg)
- 2.9 kg / 6 lb 6.2 oz (6.388 lb)
- Source of data
- -- Original-techn. papers.
- Mentioned in
- Service information, 1992.08.17
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Wolfgang Bauer. See "Data change" for further contributors.
