• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1986/1987

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 194418

• • Brand: Deutsche Philips-Ges.

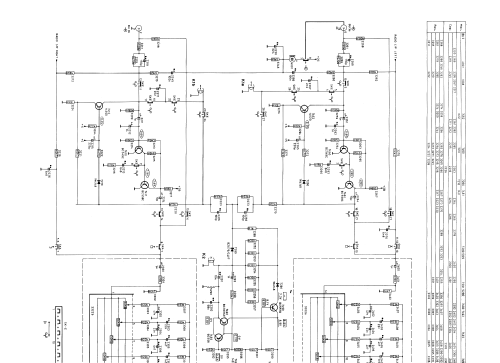

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 20

• Semiconductors
• BF494 BF494 BF494 1402E ED1402 ED1402 ED1402 BC549 BC558 ED1402 BC549 BC558 BC557 BC337 BC558 1402E 1402E 1402E 1402E 1402E TEA5570 AN7410 TEA2025

• Main principle
• Superheterodyne (common); ZF/IF 468/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 120; 220; 240 / R20 6 × 1,5 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Stereo-Radio-Recorder D8164 /30 /35 - Philips Radios - Deutschland

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 555 x 260 x 160 mm / 21.9 x 10.2 x 6.3 inch

• Notes
• Verstärker mit 5-Band-Graphic-Equalizer, Kopfhörer-Anschluss, 2-Wege-Lautsprecher-System, eingebautes Mikrofon, Recorder mit automatischer Aufnahmekontrolle und vollautomatischer Abschaltung.

• Source of data
• -- Original prospect or advert

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Günter Döring. See "Data change" for further contributors.
