• Country
• Malaysia

• Manufacturer / Brand
• Philips Malaysia; Petaling Jaya

• Year
• 1992/1993

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 310244

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• TBC548 BC558 BC548 BC548 BC548 BC558 TEA5591 AN7411 AN7312 AN7312 TA7769 TA7769

• Main principle
• Superheterodyne (common); ZF/IF 468/10700 kHz

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 110; 220 or 240 / 6 x 1,5 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 20 W (max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

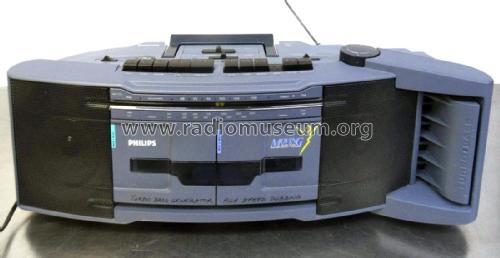

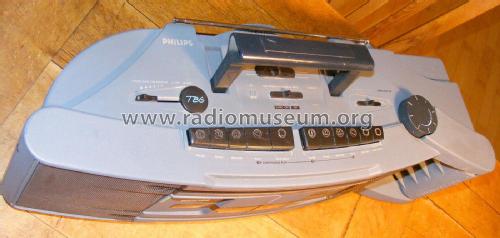

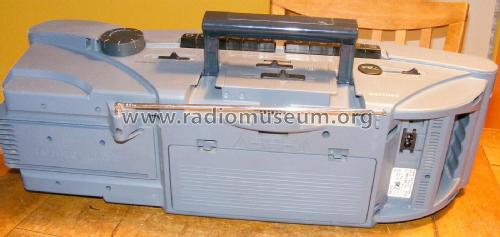

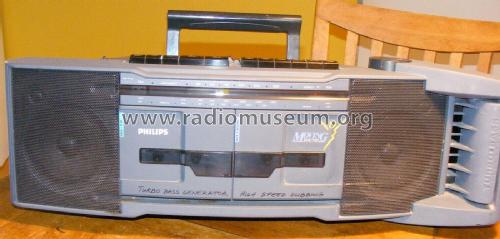

• Model: Stereo Radio Recorder MOVING SOUND V AW7112 /00 /00S /05 /05S - Philips Malaysia; Petaling

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 575 x 188 x 171 mm / 22.6 x 7.4 x 6.7 inch

• Notes

• FM-Stereo, Doppelcasettendeck, eingebautes Mikrofon, Turbo-Bass-Generator, High-Speed-Dubbing.

  4 Ausführungen:

  • /00 für 110 / 220 Volt
  • /00S für 110 / 220 Volt
  • /05 für 110 / 240 Volt
  • /05S für 110 / 240 Volt

• Net weight (2.2 lb = 1 kg)
• 5.1 kg / 11 lb 3.7 oz (11.233 lb)

• Price in first year of sale
• 340.00 Hfl

• Mentioned in
• -- Original prospect or advert

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
