• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1956

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 184725

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• ECC40 AZ41 NSP2

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

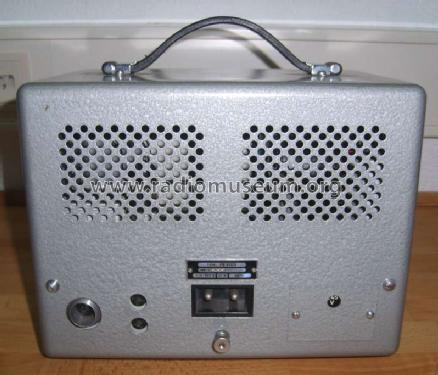

• Model: Stroboskop PR9103 - Philips; Eindhoven tubes

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 270 x 210 x 185 mm / 10.6 x 8.3 x 7.3 inch

• Notes
• Stroboskop zur Messung und zum Abgleich von Motordrehzahlen, etc. Messbereich I = 60-240 Hz (1500-6000 U/min). Messbereich II = 40-140 Hz (1000-3500 U/min). Triggerung Intern (100Hz) und Extern. Eichfunktion. Zungenfrequenzgeber in der Skala integriert. Leistungsaufnahme 37 Watt.

• Net weight (2.2 lb = 1 kg)
• 6.8 kg / 14 lb 15.6 oz (14.978 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Thomas Jennen. See "Data change" for further contributors.
