• Country
• Great Britain (UK)

• Manufacturer / Brand
• Philips Electrical, Lamps, Industrial - Miniwatt; London

• Year
• 1967 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 181041

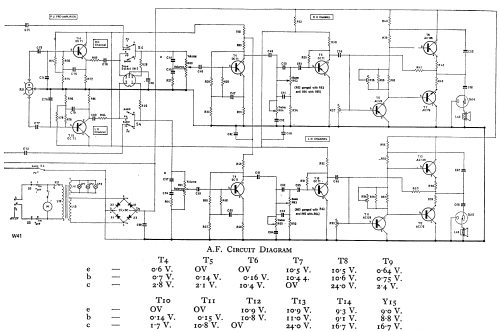

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 18

• Semiconductors
• BF115 AF115 AF115 AF115 AF116 AF116 OC71 OC71 OC71 AC128 AC128 AC176 OC71 OC71 OC71 AC128 AC128 AC176

• Main principle
• Superheterodyne (common); ZF/IF 470/10700 kHz; 4 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 200-240 Volt

• Loudspeaker
• 2 Loudspeakers

• from Radiomuseum.org
• Model: Studio Six F6G42AT - Philips Electrical, Lamps,

• Notes
• Stereo radiogram fitted with a type AG1025 record changer unit. Option for stereo FM decoder.

• Source of data
• -- Schematic

• Literature/Schematics (1)
• Radio And Television Servicing books (R&TVS)

• Author
• Model page created by Keith Staines. See "Data change" for further contributors.
