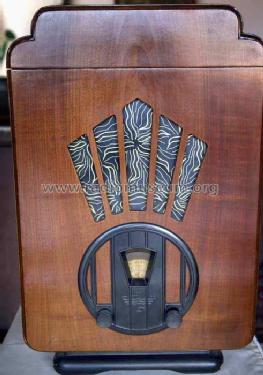

Super Inductance 672A
Philips akc. spol., Praha-Hloubetin
- Country
- Czechoslovakia
- Manufacturer / Brand
- Philips akc. spol., Praha-Hloubetin
- Year
- 1932/1933
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 114364
- Number of Tubes
- 6
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown); 1 AF stage(s)
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Super Inductance 672A - Philips akc. spol., Praha-
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 445 x 675 x 360 mm / 17.5 x 26.6 x 14.2 inch
- Price in first year of sale
- 4,950.00 Kc
- Source of data
- -- Original-techn. papers.
- Literature/Schematics (1)
- - - Data from my own collection
- Author
- Model page created by Tomas Klika. See "Data change" for further contributors.
