• Country
• Great Britain (UK)

• Manufacturer / Brand
• Philips Electrical, Lamps, Industrial - Miniwatt; London

• Year
• 1932

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 77929

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• S4VB S4VB 244V PM24A 1821

• Main principle
• TRF without regeneration

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

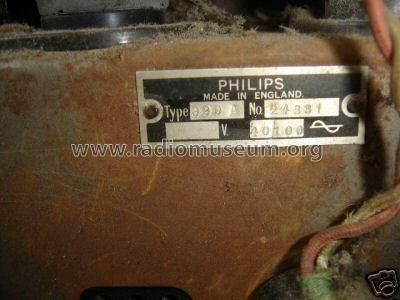

• Power type and voltage
• Alternating Current supply (AC) / 100-260 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org
• Model: Superinductance 830A - Philips Electrical, Lamps,

• Shape
• Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).

• Dimensions (WHD)
• 16.25 x 19.25 x 8 inch / 413 x 489 x 203 mm

• Notes

• "Arbolite" case in simulated walnut finish.

  Grid detection on tube 244V.



• Source of data
• Radio! Radio!

• Literature/Schematics (1)
• Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (567)

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
