Hi-Fi TA TA 22RH742

Philips; Eindhoven (tubes international!); Miniwatt

Data

Forum

Pictures

Collections

Country
Netherlands

Manufacturer / Brand
Philips; Eindhoven (tubes international!); Miniwatt

Year
1975

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
235808

Schematics

Hi-Fi TA TA 22RH742; Philips; Eindhoven (ID = 1520288) Radio — Philips; Eindhoven Hi-Fi TA TA 22RH742 (3)

Hi-Fi TA TA 22RH742; Philips; Eindhoven (ID = 1520298) Radio — Philips; Eindhoven Hi-Fi TA TA 22RH742 (3)

Hi-Fi TA TA 22RH742; Philips; Eindhoven (ID = 1520300) Radio — Philips; Eindhoven Hi-Fi TA TA 22RH742 (3)

Hi-Fi TA TA 22RH742; Philips; Eindhoven (ID = 1520301) Radio — Philips; Eindhoven Hi-Fi TA TA 22RH742 (3)

Hi-Fi TA TA 22RH742; Philips; Eindhoven (ID = 1520302) Radio — Philips; Eindhoven Hi-Fi TA TA 22RH742 (3)

Hi-Fi TA TA 22RH742; Philips; Eindhoven (ID = 1520303) Radio — Philips; Eindhoven Hi-Fi TA TA 22RH742 (3)

Hi-Fi TA TA 22RH742; Philips; Eindhoven (ID = 1520304) Radio — Philips; Eindhoven Hi-Fi TA TA 22RH742 (3)

Hi-Fi TA TA 22RH742; Philips; Eindhoven (ID = 1520305) Radio — Philips; Eindhoven Hi-Fi TA TA 22RH742 (3)

Hi-Fi TA TA 22RH742; Philips; Eindhoven (ID = 1520307) Radio — Philips; Eindhoven Hi-Fi TA TA 22RH742 (3)

Hi-Fi TA TA 22RH742; Philips; Eindhoven (ID = 1520308) Radio — Philips; Eindhoven Hi-Fi TA TA 22RH742 (3)

Hi-Fi TA TA 22RH742; Philips; Eindhoven (ID = 1520310) Radio — Philips; Eindhoven Hi-Fi TA TA 22RH742 (3)

Hi-Fi TA TA 22RH742; Philips; Eindhoven (ID = 1520312) Radio — Philips; Eindhoven Hi-Fi TA TA 22RH742 (3)

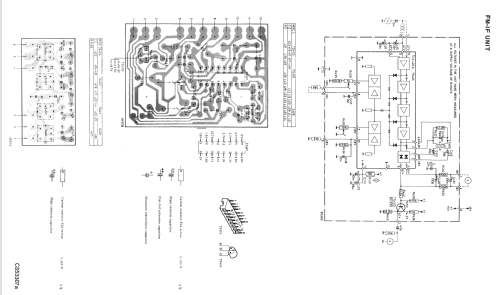

Hi-Fi TA TA 22RH742; Philips; Eindhoven (ID = 1520313) Radio — Philips; Eindhoven Hi-Fi TA TA 22RH742 (3)

Hi-Fi TA TA 22RH742; Philips; Eindhoven (ID = 1520316) Radio — Philips; Eindhoven Hi-Fi TA TA 22RH742 (3)

Hi-Fi TA TA 22RH742; Philips; Eindhoven (ID = 1520317) Radio — Philips; Eindhoven Hi-Fi TA TA 22RH742 (3)

Hi-Fi TA TA 22RH742; Philips; Eindhoven (ID = 1520319) Radio — Philips; Eindhoven Hi-Fi TA TA 22RH742 (3)

Hi-Fi TA TA 22RH742; Philips; Eindhoven (ID = 1520321) Radio — Philips; Eindhoven Hi-Fi TA TA 22RH742 (3)

Hi-Fi TA TA 22RH742; Philips; Eindhoven (ID = 1520322) Radio — Philips; Eindhoven Hi-Fi TA TA 22RH742 (3)

Hi-Fi TA TA 22RH742; Philips; Eindhoven (ID = 1520323) Radio — Philips; Eindhoven Hi-Fi TA TA 22RH742 (3)

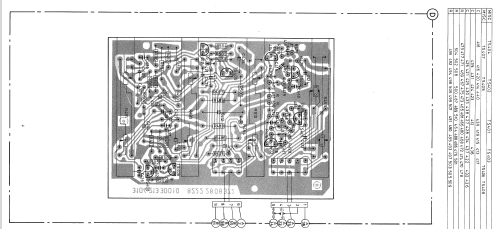

Hi-Fi TA TA 22RH742; Philips; Eindhoven (ID = 1520326) Radio — Philips; Eindhoven Hi-Fi TA TA 22RH742 (3)

Hi-Fi TA TA 22RH742; Philips; Eindhoven (ID = 1520327) Radio — Philips; Eindhoven Hi-Fi TA TA 22RH742 (3)

Hi-Fi TA TA 22RH742; Philips; Eindhoven (ID = 1520328) Radio — Philips; Eindhoven Hi-Fi TA TA 22RH742 (3)

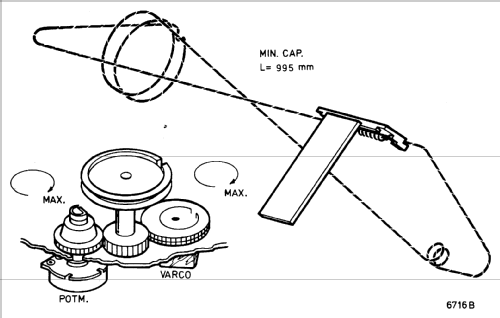

Hi-Fi TA TA 22RH742; Philips; Eindhoven (ID = 1520329) Radio — Philips; Eindhoven Hi-Fi TA TA 22RH742 (3)

Hi-Fi TA TA 22RH742; Philips; Eindhoven (ID = 1520330) Radio — Philips; Eindhoven Hi-Fi TA TA 22RH742 (3)

Hi-Fi TA TA 22RH742; Philips; Eindhoven (ID = 1520331) Radio — Philips; Eindhoven Hi-Fi TA TA 22RH742 (3)

Hi-Fi TA TA 22RH742; Philips; Eindhoven (ID = 1520333) Radio — Philips; Eindhoven Hi-Fi TA TA 22RH742 (3)

Hi-Fi TA TA 22RH742; Philips; Eindhoven (ID = 2006047) Radio — Philips; Eindhoven Hi-Fi TA TA 22RH742 (3)

Hi-Fi TA TA 22RH742; Philips; Eindhoven (ID = 2006048) Radio — Philips; Eindhoven Hi-Fi TA TA 22RH742 (3)

Hi-Fi TA TA 22RH742; Philips; Eindhoven (ID = 2006049) Radio — Philips; Eindhoven Hi-Fi TA TA 22RH742 (3)

Hi-Fi TA TA 22RH742; Philips; Eindhoven (ID = 2006050) Radio — Philips; Eindhoven Hi-Fi TA TA 22RH742 (3)

Hi-Fi TA TA 22RH742; Philips; Eindhoven (ID = 1453619) Radio — Philips; Eindhoven Hi-Fi TA TA 22RH742 (2)

Hi-Fi TA TA 22RH742; Philips; Eindhoven (ID = 2540079) Radio — Philips; Eindhoven Hi-Fi TA TA 22RH742 (1)

Hi-Fi TA TA 22RH742; Philips; Eindhoven (ID = 2540080) Radio — Philips; Eindhoven Hi-Fi TA TA 22RH742 (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
43

Semiconductors

Main principle
Superheterodyne (common); ZF/IF 452/10700 kHz; 2 AF stage(s)

Wave bands
Broadcast, Long Wave, Short Wave plus FM or UHF.

Power type and voltage
Alternating Current supply (AC) / 110; 117; 220; 240 Volt

Loudspeaker
- This model requires external speaker(s).

Power out
18 W (30 W max.)

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: Hi-Fi TA TA 22RH742 - Philips; Eindhoven tubes

Shape
Tablemodel, low profile (big size).

Dimensions (WHD)
603 x 117 x 295 mm / 23.7 x 4.6 x 11.6 inch

Notes
TA 22RH742 es besitzt 43 Transistoren und 3 IC´s.
Der UKW-Tuner ( 87-104MHz) hat zusätzlich fünf Stationstasten und eine Frequenzanzeige über ein Drehspulmesswerk. Es sind zwei Lautsprecherausgänge pro Kanal vorhanden, von denen einer ein abgeschwächter Ausgang für den rückwärtigen Lautsprecher ist.
Zusätzlich ist ein Kopfhörerausgang vorhanden. Für externe Tonquellen steht je ein Eingang für magnetische Tonabnehmer und Kristall-Tonabnehmer, bzw Tonband zu Verfügung.
