Tape Deck 06AW620

Philips do Brasil S.A.

Data
Forum
Pictures
Collections

  • Year
  • 1980 ??
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 295567

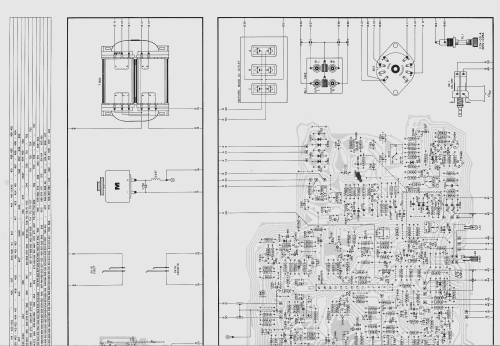

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 49
  • Main principle
  • Hi-Fi-High End products
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player; Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 110/127/220/240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Tape Deck 06AW620 - Philips do Brasil S.A.
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 420 x 110 x 300 mm / 16.5 x 4.3 x 11.8 inch
  • Notes

  • By mid 80´s modular hifi - also called "separates" - were a hit in Brazlian market, in spite of they high price. In an attempt to make this concept more accessible, thereby increasing its market share, Philips' commercial department briefed the local audio lab (at the time in Piracicaba city) to develop some families of modular sets with low cost and basic specifications. These families were composed by the following models:

    06AH621 and 06AH625 = Receivers
    06AH325 = Stereo amplifier
    06AH125 = Tuner
    06AW620, 06AW622 and 06AW721 = Cassette record/players
    06AF294 = Turntable
    Dedicated speaker boxes for each family and and a wood rack

    06AW620 Tape-Deck

    Soft touch mechanism (electric driven)
    Mechanic tape counter
    Phone output
    Stereo mic input
    Led type level indicator left & rigth
    Wow & Flutter max 0.2%
    Frequency response (DIN 45511):   40Hz to 10KHz (Fe2O3 tape)
                                                       40Hz to 12KHz (CrO2 tape)
    Winding time = max 85s (C-60 tape)
    Distortion = max 4% (at 0 dB level)
    Signal to noise ratio = min 45 dB
    Channel separation = 45 dB @ 1 kHz
    Track separation = 70 dB
    Erase level = 60 dB
    Erase frequency = 80 kHz + - 15%
    Equalization =   120 + 3180 micro seconds for Fe2O3 tape
                             70 + 3180 micro seconds for CrO2 tape

  • Literature/Schematics (1)
  • - - Manufacturers Literature
  • Author
  • Model page created by Antonio Rabitti. See "Data change" for further contributors.
