• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1952/1953

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 108854

• • Brand: Deutsche Philips-Ges.

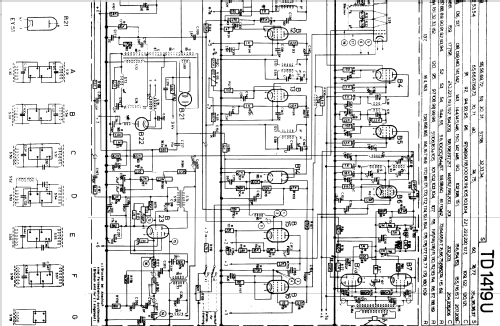

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 24

• Valves / Tubes
• ECC81 ECL80 EF80 EQ80 EY51 EB41 PL81 PL83 PY80 PY82 MW36-24

• Main principle
• Superheterodyne (common); ZF/IF 23500/18000 kHz; 2 AF stage(s)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: TD1419U - Philips Radios - Deutschland

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 700 x 500 x 480 mm / 27.6 x 19.7 x 18.9 inch

• Notes
• Röhren teilweise mehrfach vorhanden.
  VHF-Kanäle 5 - 10, zusätzlich UKW-Rundfunkbereich.
  Parallelton-Empfänger. Ton-ZF 18MHz.
  Bei UKW-Betrieb können Kippteile separat ausgeschaltet werden.
  Schaltung entspicht weitgehend Modell TD1410U.

• Net weight (2.2 lb = 1 kg)
• 32.7 kg / 72 lb 0.4 oz (72.026 lb)

• Price in first year of sale
• 1,275.00 DM

• Source of data
• -- Original-techn. papers.

• Mentioned in
• Funk-Technik (FT) (Heft 3/1953, S.71; Heft 6/1953, S.176)

• Author
• Model page created by Bernhard Nagel. See "Data change" for further contributors.
