Televisore 17-21 TX230A-00
Philips Italy; Milano (MI)
- Country
- Italy
- Manufacturer / Brand
- Philips Italy; Milano (MI)
- Year
- 1960 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 353168

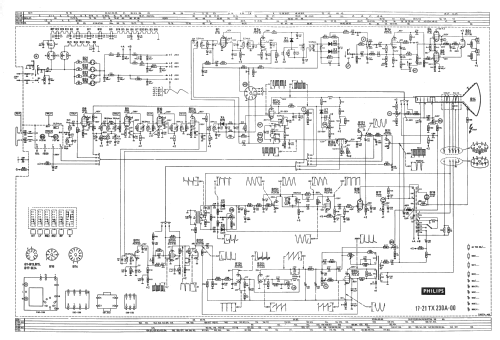

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 24
- Valves / Tubes
- PCC88 PCF80 UF85 EF80 EF80 PCF80 EF80 PCF80 PCF80 PL84 PL84 PCL84 PCF80 ECH83 PCL82 PCF80 PL36 PY81 DY87 UY85 UY85 UY85 UY85 unknown_CRT
- Number of Transistors
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 2 Loudspeakers
- from Radiomuseum.org
- Model: Televisore 17-21 TX230A-00 - Philips Italy; Milano MI
- Notes
-
Televisore in bianco/nero con sola VHF.
Circuito audio senza trasformatore di uscita con due altoparlanti collegati direttamente alla seconda griglia di una delle PL84.
Circuito raddrizzatore con 4 UY85 in parallelo.
Lo stesso schema era utilizzato per due televisori da 17 pollici e da 21 pollici.
- Mentioned in
- -- Schematic (Schemario TV Philips Service, Edizioni CELI 1972.)
- Author
- Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
