• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1949 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 105158

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 19

• Valves / Tubes
• UF42 UB41 UCH42 UL41 UAF42 UY41 EY51 AZ50 UL44 MW22-7

• Conflicting model year with tube data.
• The model date contradicts tube dates. [ UF42 (1950) UB41 (1950)]

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 115; 130; 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch

• Material
• Wooden case

• from Radiomuseum.org

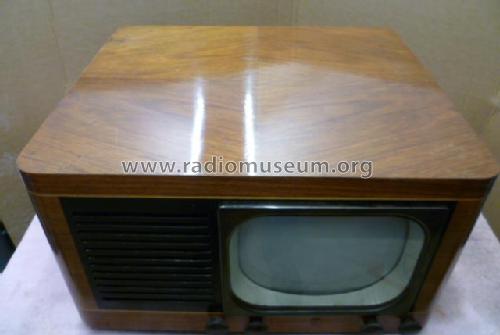

• Model: TF390A - Philips; Eindhoven tubes

• Dimensions (WHD)
• 500 x 445 x 290 mm / 19.7 x 17.5 x 11.4 inch

• Notes

• Some tubes more then one time. Gerät für 441 Zeilen, 42-46 MHz

• Net weight (2.2 lb = 1 kg)
• 19 kg / 41 lb 13.6 oz (41.85 lb)

• Price in first year of sale
• 70,000.00 F

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by Nicolas Blazianu. See "Data change" for further contributors.
