The Nightline AJ3180 /00
Philips 飞利浦; China
- Country
- People's Republic of China
- Manufacturer / Brand
- Philips 飞利浦; China
- Year
- 1991 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 75562
Serien Nr.:2003022753

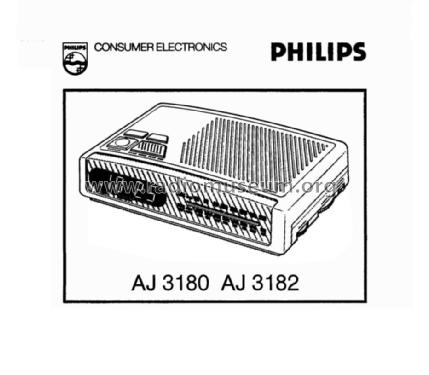

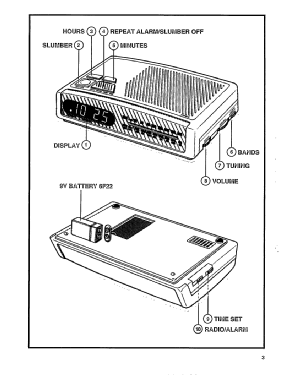

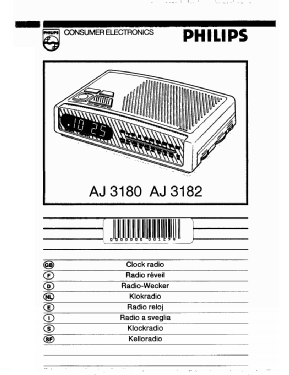

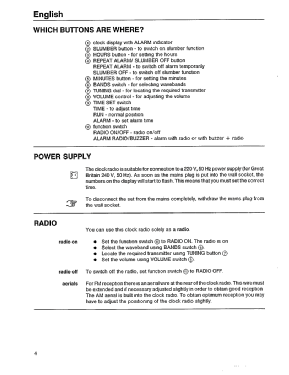

Original manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 2
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Line / Batteries (any type) / 220 / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
- Power out
- 0.3 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: The Nightline AJ3180 /00 - Philips 飞利浦; China
- Shape

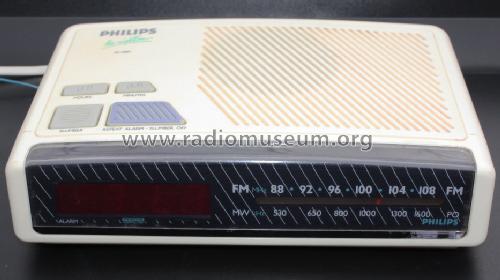

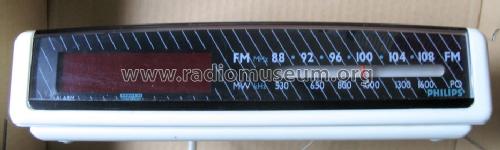

- Tablemodel with Clock ((Alarm-) Clock Radio).
- Dimensions (WHD)
- 220 x 50 x 145 mm / 8.7 x 2 x 5.7 inch
- Notes
-
Made in China
- Net weight (2.2 lb = 1 kg)
- 0.7 kg / 1 lb 8.7 oz (1.542 lb)
- Author
- Model page created by Bernd Pötzsch. See "Data change" for further contributors.
- Other Models
-
Here you find 204 models, 201 with images and 24 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
