The Nightline D3700 /10

Philips Hong Kong

Data
Forum
Pictures
Collections

  • Year
  • 1987 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 354247

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage

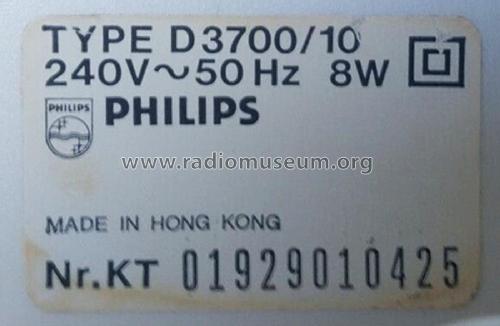

  • Alternating Current supply (AC) / 50 Hz, 240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: The Nightline D3700 /10 - Philips Hong Kong
  • Shape
  • Tablemodel with Clock ((Alarm-) Clock Radio).
  • Notes

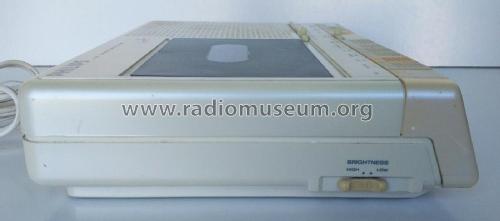

  • Digital clock radio with cassette recorder.

    Frequency range:
    AM 512~1653 kHz
    FM 87.35~108.25 MHz

    The power lead for this version is fitted with an Australian/New Zealand Type I mains plug.

    See also other versions:
    D3700 /00 (50Hz, 220V, 468kHz I.F., Type C mains plug)
    D3700 /17 (60Hz, 120V)
    D3700 /37 (60Hz, 120V)

  • Literature/Schematics (1)
  • -- Original-techn. papers. (Philips Service Manual.)
  • Author
  • Model page created by Martin Kent. See "Data change" for further contributors.
