• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1964/1965

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 88436

• • Brand: Deutsche Philips-Ges.

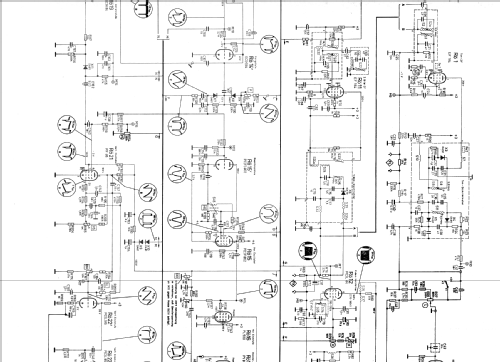

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 18

• Valves / Tubes
• PC88 PC86 PCC189 PCF86 EF183 EF184 EF184 PCL86 PCL84 ECH84 ECH84 PCF802 PF86 PCL85 PL500 PY88 DY86 A59-11W

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Tizian-Automatic 23TD394A Ch= D3 - Philips Radios - Deutschland

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 670 x 510 x 390 mm / 26.4 x 20.1 x 15.4 inch

• Notes
• VHF/UHF. Varianten: 00= dunkel, 06= hell. Anschraubbare Beine gegen Mehrpreis (29,- DM).

• Net weight (2.2 lb = 1 kg)
• 31 kg / 68 lb 4.5 oz (68.282 lb)

• Price in first year of sale
• 1,140.00 DM

• Source of data
• Handbuch VDRG 1964/1965

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Bernd Pötzsch. See "Data change" for further contributors.
