• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1963–1966

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 88316

• • Brand: Deutsche Philips-Ges.

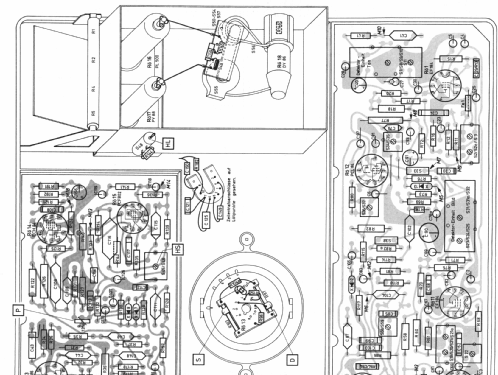

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 27

• Valves / Tubes
• ECC85 ECH81 EAF801 EF184 EM87 EM87 ECC808 ECL86 ECL86 PC88 PC86 PCC189 PCF86 EF183 EF184 EF184 PCL86 ECH84 PCL84 PCL85 PF86 ECH84 PCF802 DY86 PY88 PL500 A59-11W

• Number of Transistors
• 3

• Semiconductors
• AF126 AF126 AF126

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Changer (Record changer); Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

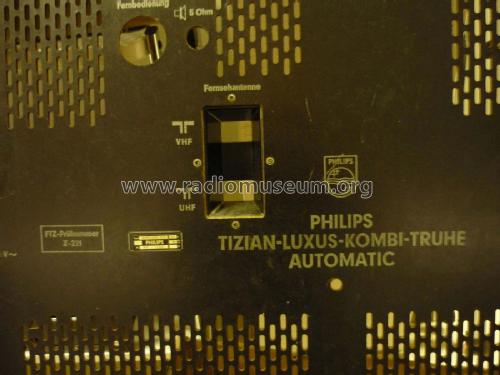

• Model: Tizian-L-Kombinations-Truhe 23RD392A Ch= P3 + B5DZ33A/01 - Philips Radios - Deutschland

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 700 x 940 x 440 mm / 27.6 x 37 x 17.3 inch

• Notes
• Fernseh-Chassis = 23TD392A
  Rundfunk-Chassis 6/12 Kreise, LMKU, Stereo-NF-Verstärker mit 2 Endstufen je 4,5 W
  Phono-Chassis = SC15.

• Net weight (2.2 lb = 1 kg)
• 60 kg / 132 lb 2.5 oz (132.159 lb)

• Source of data
• Handbuch VDRG 1963/1964

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Bernd Pötzsch. See "Data change" for further contributors.
