• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1964–1966

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 360534

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• EF98

• Number of Transistors
• 24

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Transistor Analyzer PM6505A /02 /04 /05 - Philips; Eindhoven tubes

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 400 x 330 x 290 mm / 15.7 x 13 x 11.4 inch

• Notes

• Siehe auch die Vorgängerversion: PM6505
  und die Nachfolgeversion: PM6505B

• Net weight (2.2 lb = 1 kg)
• 19 kg / 41 lb 13.6 oz (41.85 lb)

• Price in first year of sale
• 4,120.00 DM

• Mentioned in
• -- Original prospect or advert (Electronic Engineering (magazine), June 1964, p. 121)

• Literature/Schematics (1)

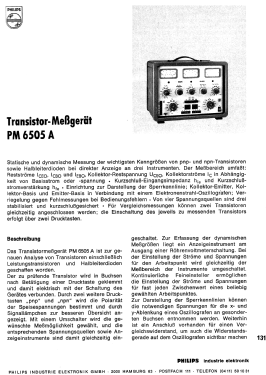

• - - Manufacturers Literature (Katalog, Philips Industrie Elektronik, 1966)

• Author
• Model page created by a member from D. See "Data change" for further contributors.
