• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1958/1959

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 254080

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 1

• Semiconductors
• OC73

• Main principle
• Audio-Amplification; 1 AF stage(s)

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Various materials

• from Radiomuseum.org
• Model: Transistor-NF-Vorverstärker AG9005 - Philips; Eindhoven tubes

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 86 x 48.5 x 76 mm / 3.4 x 1.9 x 3 inch

• Notes

• Phono-Entzerrer-Vorverstärker für Philips HiFi-Studio-Plattenspieler AG2205 in Verbindung mit AG3021 (magnetdynamisches System mit Diamant für Mikrorillen, mono)

• Price in first year of sale
• 60.00 CHF

• Source of data
• - - Manufacturers Literature

• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (4)

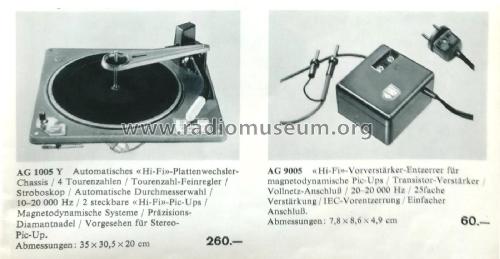

• Philips Katalog, Zürich, ~ 1957

• Author
• Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
