• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1962/1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 227000

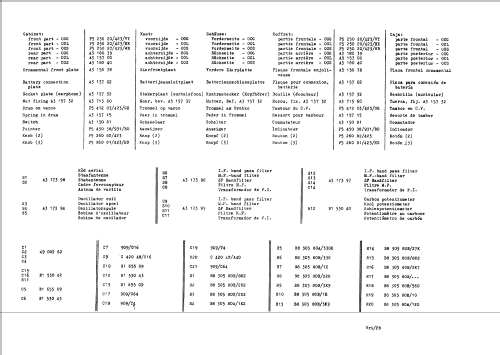

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes

• Number of Transistors

• Semiconductors
• AF116 AF117 AF117 OC59 or. OC75 OC79 or. OC74 OC79C or. OC140 OA95

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 1x 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

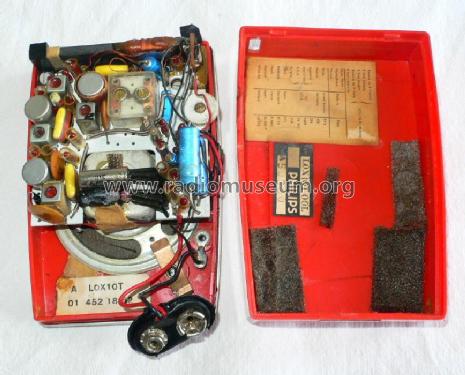

• Model: Transistor Six L0X10T /00L - Philips; Eindhoven tubes

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 93 x 64 x 29 mm / 3.7 x 2.5 x 1.1 inch

• Notes

• MW: 185 - 580 m (1622 - 517 kc/s).

  The original service document states OC170, OC169, OC169, OC75, OC74, OC140, and OA95 as transistor line-up, however this is erroneous (see documents).
