• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1969/1970

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 268986

• • Brand: Deutsche Philips-Ges.

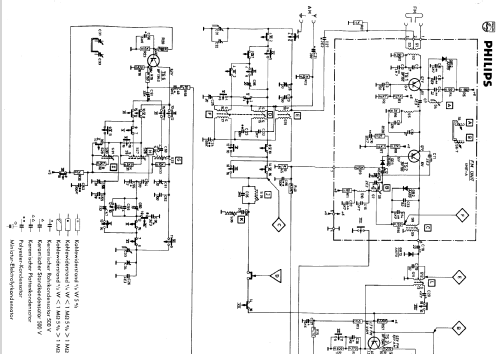

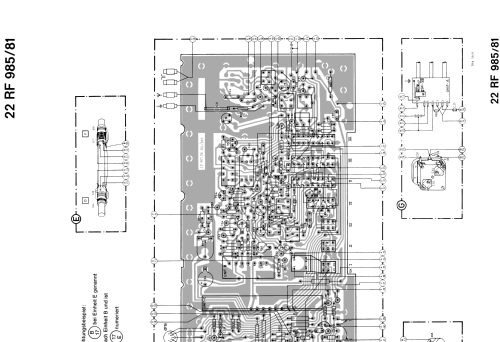

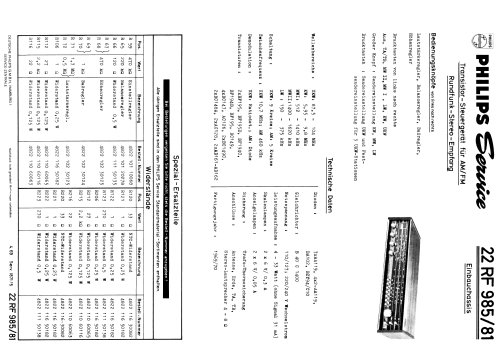

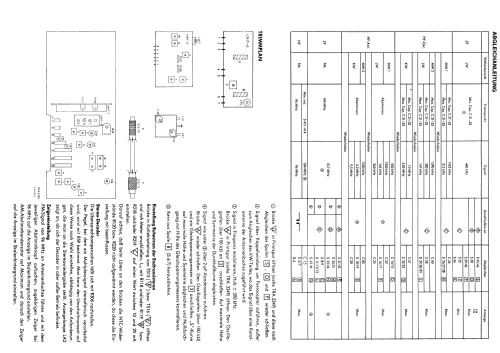

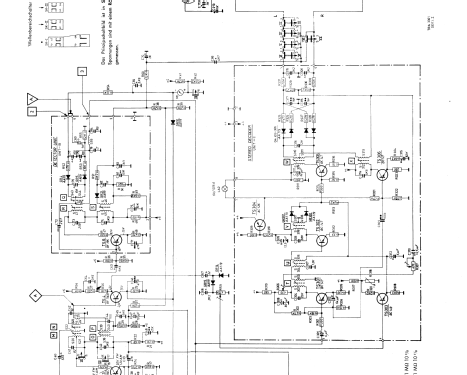

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 22

• Semiconductors
• BF195 BF195 BF195 BF194 BF194 BF195 BC149 BC147 BC147 BC147 BC147 AC126 BC149 BC149 BC148 BC148 AC128 AC128 AD161 AD162 AD161 AD162 AA119 BA102 BZY94 B40C1400

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

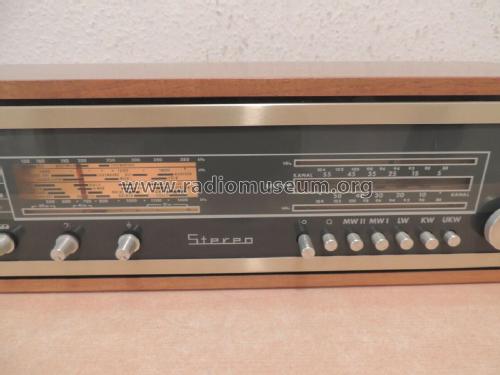

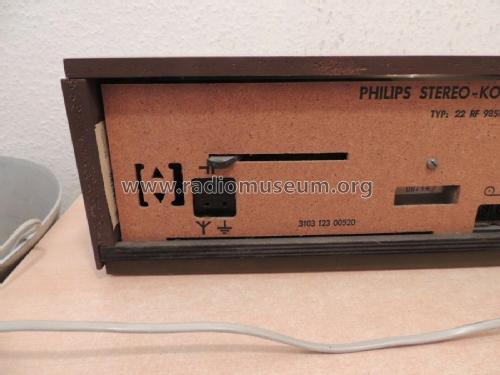

• Model: Transistor-Steuergerät AM/FM Stereo 22 RF 985/81 - Philips Radios - Deutschland

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 517 x 108 x 190 mm / 20.4 x 4.3 x 7.5 inch

• Notes

• Philips Einbauchassis 22RF 985/81

  Wellenbereiche:
  UKW:    87,5 - 104 MHz
  KW:       5,95 -  9,8 MHz
  MW I:    512 - 1410 kHz
  MW II: 1400 - 1620 kHz
  LW:        150 - 375 kHz

• Net weight (2.2 lb = 1 kg)
• 3 kg / 6 lb 9.7 oz (6.608 lb)

• Author
• Model page created by a member from D. See "Data change" for further contributors.

• Other Models

• Here you find 2542 models, 2254 with images and 1563 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Philips Radios - Deutschland
