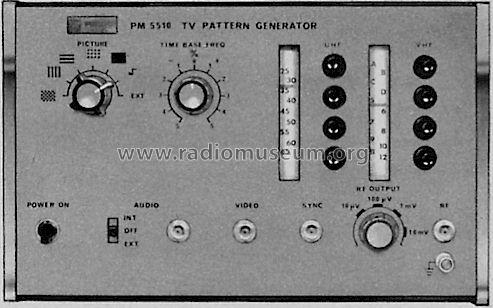

TV Pattern-Generator PM5510
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1967 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 96333
FS
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: TV Pattern-Generator PM5510 - Philips; Eindhoven tubes
- Shape
- Tablemodel, low profile (big size).
- Notes
- s/w-Testbildgenerator mit 5 Testmustern, 8 verschiedene Bildträgerfrequenzen im Bereich Band I-V nach CCIR B/G mit 1000 kHz modulierbaren Tonträger aufrufbar, zusätzlicher Videoausgang.
- Price in first year of sale
- 1,890.00 DM
- Source of data
- -- Original prospect or advert
- Author
- Model page created by a member from A. See "Data change" for further contributors.
