• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1954

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 95420

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 22

• Valves / Tubes
• PCC84 PCF80 EF80 EF80 EF80 EF80 PL83 EF80 ECH81 EF80 PABC80 PL82 ECL80 ECL80 PL82 ECL80 PL81 PY81 EY51 PY82 PY82 MW36-44

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch

• Material
• Wooden case

• from Radiomuseum.org

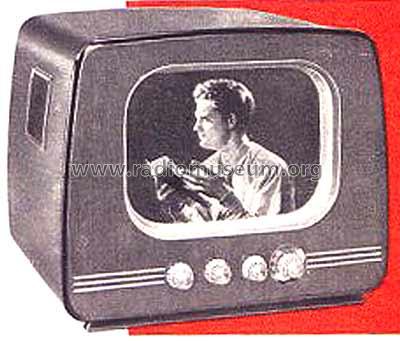

• Model: TX1422A-08 Ch= C1 - Philips; Eindhoven tubes

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 430 x 490 x 430 mm / 16.9 x 19.3 x 16.9 inch

• Notes

• Empfangsbereich: Band I + III, Kanal 2a - 4, 5 - 12.

• Net weight (2.2 lb = 1 kg)
• 25.2 kg / 55 lb 8.1 oz (55.507 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
