• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1949/1950

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 100984

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 26

• Valves / Tubes
• UY41 UBC41 UL41 UF42 UF41 UCH41 UL44 EA40 EY51 MW22-14 or MW22-16

• Conflicting model year with tube data.
• The model date contradicts tube dates. [ UF42 (1950) MW22-16 (1950)]

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch

• Material
• Wooden case

• from Radiomuseum.org

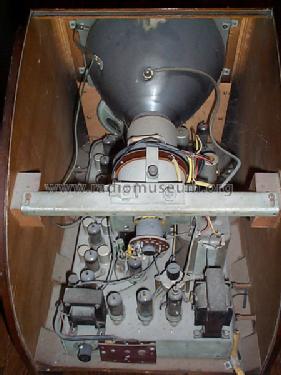

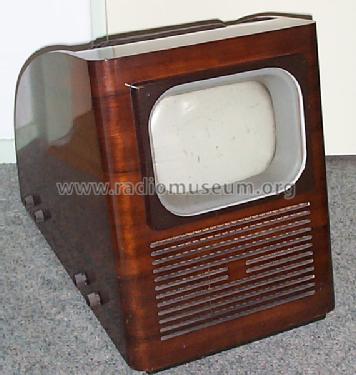

• Model: TX594U - Philips; Eindhoven tubes

• Shape
• Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.

• Notes

• Television receiver for experimental broadcast, VHF channel 4 only, 567 lines. The ca. 150 pieces made of this receiver were distributed amongst Philips employees in Eindhoven.

  The set is called "Radio-Televisie ontvanger" in the technical documentation although it only receives TV broadcasts. It was nicknamed "hondje" (small dog).

  Tubes are listed once per type; the complement might be incomplete / inaccurate.

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Michiel van der Smeede. See "Data change" for further contributors.
