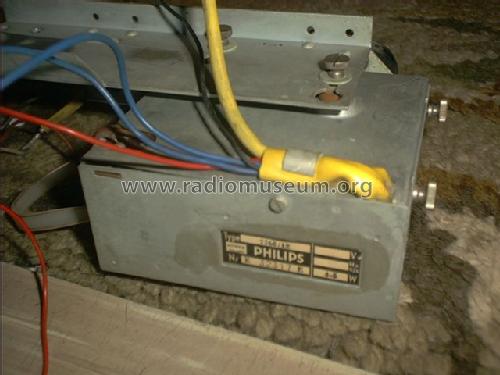

F.M. Voorzetunit - UKW-Vorsatz 7768 /12
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1950
- Category
- Pre-stage (adaptor for SW/FM/VHF/UHF incl. built-in), Frequency converter
- Radiomuseum.org ID
- 86657
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 2
- Main principle
- RF Converter/Adapter (not voltage converter)
- Wave bands
- FM Broadcast Band Only
- Power type and voltage
- Powered by external power supply or a main unit. / DC 240 & AC 6,3 Volt
- Material
- Metal case
- from Radiomuseum.org
- Model: F.M. Voorzetunit - UKW-Vorsatz 7768 /12 - Philips; Eindhoven tubes
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 110 x 108 x 66 mm / 4.3 x 4.3 x 2.6 inch
- Notes
-
Superregenerative receiver with RF pre-amplification and FM to AM slope detection.
Frequency range: 87,5 - 100 MHz.
- Net weight (2.2 lb = 1 kg)
- 0.7 kg / 1 lb 8.7 oz (1.542 lb)
