• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1953 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 112130

• • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 13

• Valves / Tubes
• EF80 EC92 ECH81 EF41 EM34 EF41 EBF80 EB41 ECC40 EL84 EL84 EZ80 EZ80

• Main principle
• Superhet with RF-stage; 3 AF stage(s)

• Tuned circuits
• 9 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220; 245 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

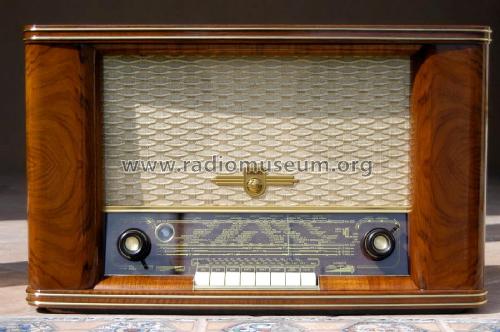

• Model: Uranus 54 BD733A-01 - Philips Radios - Deutschland

• Shape
• Tablemodel with Push Buttons.

• Notes
• LW, MW, 3 × KW, UKW und Ortssender.
  Tongeräte-Schalter: Rundfunk, Tonabnehmer, Tonband-Wiedergabe und Fernsehton.
  Bandbreite-Schalter: schmal, mittel und breit.
  Umschalter Lautsprecher (intern/extern).
  Gegentakt-Endstufe, ohne Phasenumkehrstufe.

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
