- Country
- Great Britain (UK)
- Manufacturer / Brand
- Philips Electrical, Lamps, Industrial - Miniwatt; London
- Year
- 1937 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 90943

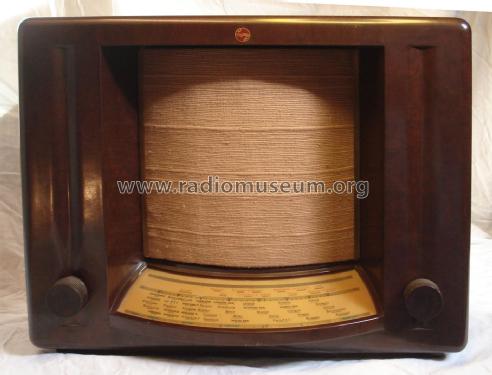

Picture from collection of Jan Jonker (NL).
Picture from collection of Jan Jonker (NL).
Picture from collection of Jan Jonker (NL).
Picture from collection of Jan Jonker (NL).
Picture from collection of Jan Jonker (NL).
Picture from collection of Jan Jonker (NL).
Picture from collection of Jan Jonker (NL).
Picture from collection of Jan Jonker (NL).
Picture from collection of Jan Jonker (NL).
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 128 kHz; 2 AF stage(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set / 200-260 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: V7U - Philips Electrical, Lamps,
- Shape
- Tablemodel, low profile (big size).
- Notes
- AC/DC Version of the V7A, without a pickup input.
- Mentioned in
- Bulletin of the British Vintage Wireless Society (BVWS, 73) (Volume 20, Number 1, Feb. 1995)
- Literature/Schematics (1)
- Trader sheet 326
- Author
- Model page created by a member from A. See "Data change" for further contributors.
