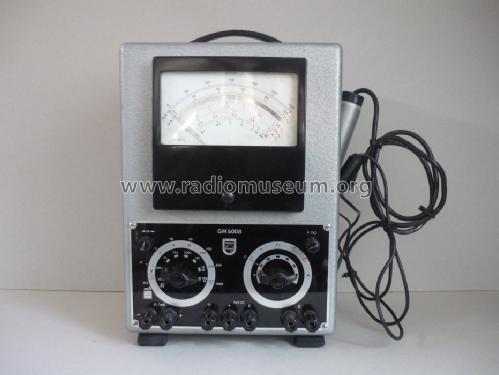

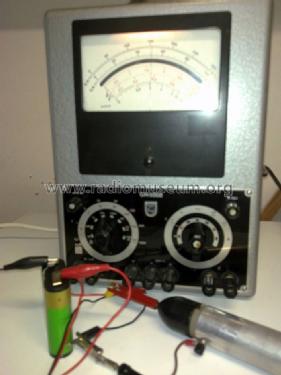

Vacuum Tube Voltmeter (VTVM) GM6008
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1955
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 199116
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110-250 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Vacuum Tube Voltmeter GM6008 - Philips; Eindhoven tubes
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 225 x 325 x 190 mm / 8.9 x 12.8 x 7.5 inch
- Notes
- Philips GM6008 Vacuum Tube Voltmeter;
Volts: DC
20 mV - 300 Volt, 1-3-10-30-100-300 Volt with 17 Mohm/Volt
Extra input 1000 V with 30 MOhm input resistance.
AC voltage: 20 Hz --> 100 MHz
1-3-10-100-300 Volt
Input resistance under 1 MHz: 1 MOhm,
10 MHz ca. 0,2 MOhm and 40 MHz ca. 0,07 MOhm.
DC current:
10 µA - 1 A in 8 ranges
300 µA-1-3-10-30-100-300-1000 mA
AC current: (40-60 Hz)
10 µA - 1 A in 8 ranges
300 µA-1-3-10-30-100-300-1000 mA
Resistance:
1 Ohm - 1000 MOhm.
10-100-1000 Ohm, 10-100 kOhm, 1-10-100 MOhm full scale
Capacitance:
100-1000-30.000 pF - 0,3-3 µF.
- Net weight (2.2 lb = 1 kg)
- 10 kg / 22 lb 0.4 oz (22.026 lb)
- Price in first year of sale
- 1,350.00 DM
- Author
- Model page created by Pentti Lamminen. See "Data change" for further contributors.
