Vahvistinkeskus, PA-System KVK-120
Philips Finland - see also Fenno and TeRate
- Country
- Finland
- Manufacturer / Brand
- Philips Finland - see also Fenno and TeRate
- Year
- 1960 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 236291
Click on the schematic thumbnail to request the schematic as a free document.
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Record Player (perh.Changer)
- Power type and voltage

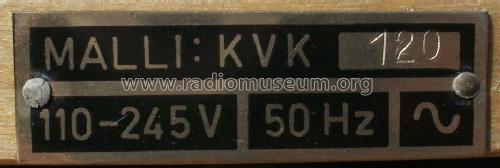

- Alternating Current supply (AC) / 110-245 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 120 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Vahvistinkeskus, PA-System KVK-120 - Philips Finland - see also
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 555 x 775 x 405 mm / 21.9 x 30.5 x 15.9 inch
- Notes
-
Public address system with radio, power amplifier and record player.
Plywood case with veneer and metal front panel.
Power amplifier Philips EL 6431.
