- Country
- Hungary
- Manufacturer / Brand
- Philips Hungary, Rádió és Villamossági Rt., Magyar Philips; Budapest
- Year
- 1929
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 306923

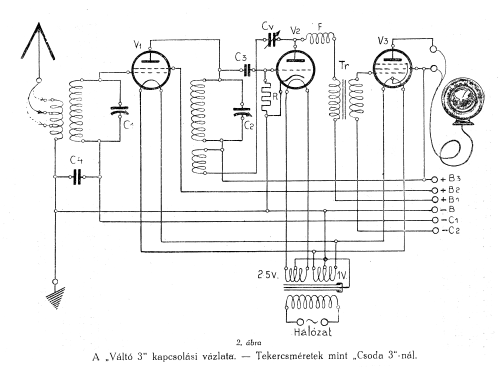

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Other, details in remarks or not known. / 110, 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Various materials
- from Radiomuseum.org
- Model: Váltó 3 - Philips Hungary, Rádió és
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 465 x 200 x 180 mm / 18.3 x 7.9 x 7.1 inch
- Notes
-
Only filament is powered from AC net, the rest is powered from batteries or additional AC power supply.
- Price in first year of sale
- 183.52 Pengő
- Mentioned in
- - - Manufacturers Literature (Philips Csoda 3 kapcsolások)
- Author
- Model page created by Sándor Perneky. See "Data change" for further contributors.
