• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1955/1956

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 20368

• • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• EL81 EL81

• Number of Transistors

• Semiconductors
• OA55 or. OA71 B250C100 B250C100

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 20 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

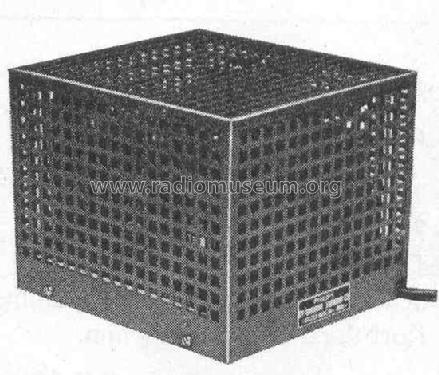

• Model: VE1403 [EL81] - Philips Radios - Deutschland

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 185 x 155 x 195 mm / 7.3 x 6.1 x 7.7 inch

• Notes
• Endstufe; Frequenzbereich 50-15000 Hz; 2 Eingänge, 2 Ausgänge.

• Net weight (2.2 lb = 1 kg)
• 6.2 kg / 13 lb 10.5 oz (13.656 lb)

• Price in first year of sale
• 240.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1955/56

• Mentioned in
• -- Original-techn. papers. (Technische Daten von 11.55)
