• Country
• Denmark

• Manufacturer / Brand
• Philips Radio A/S; København

• Year
• 1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 243889

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• ECC85 EF89 ECH81 EBF89 EM84 ECC83 ECL82 ECL82 ECL82 ECL82

• Main principle
• Superheterodyne (common); ZF/IF 445/10700 kHz; 8 AF stage(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 12 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

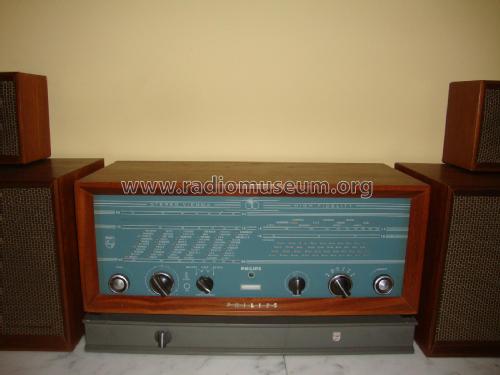

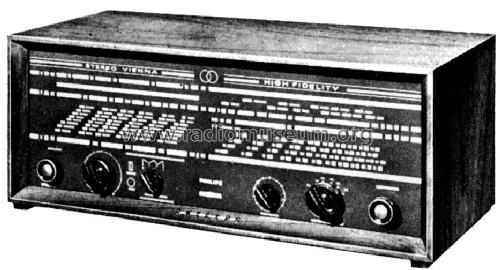

• Model: Stereo Vienna BDK702A - Philips Radio A/S; København

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 552 x 224 x 248 mm / 21.7 x 8.8 x 9.8 inch

• Notes

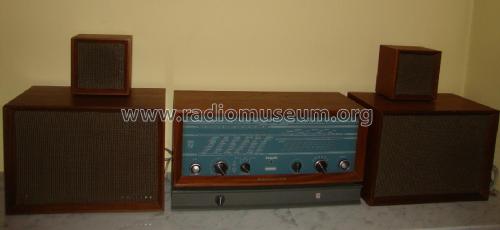

• Stereo-Receiver für den Betrieb mit 2 externen Lautsprecherboxen,
  Impedanz wahlweise 800 Ohm oder 5 Ohm.

  Stereo receiver for operation with 2 external speakers,
  optional impedance 800 ohms or 5 ohms.

  Stereo receiver til drift med 2 eksterne højttalere, valgfri impedans 800 ohm eller 5 ohm.

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
