• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1976

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 358707

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Power type and voltage
• Alternating Current supply (AC) / 50-100 Hz, 115; 230 Volt

• Material
• Metal case

• from Radiomuseum.org

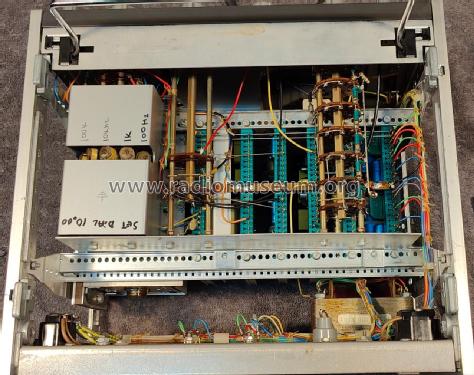

• Model: Wide Band Generator PM 5145 /01 - Philips; Eindhoven tubes

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 280 x 180 x 260 mm / 11 x 7.1 x 10.2 inch

• Notes

• Frequency range: 10 Hz to 12 MHz
  Sinewave and squarewave and AM modulation on sine mode.

• Net weight (2.2 lb = 1 kg)
• 7 kg / 15 lb 6.7 oz (15.419 lb)
