• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1970 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 264391

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 14

• Valves / Tubes
• PL84 PCL86 PCF201 PCF200 PFL200 PCF80 DY802 PL504 PY88 PCL805 PCF802 PCH200 PCF200 A50-120W

• Number of Transistors
• 13

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

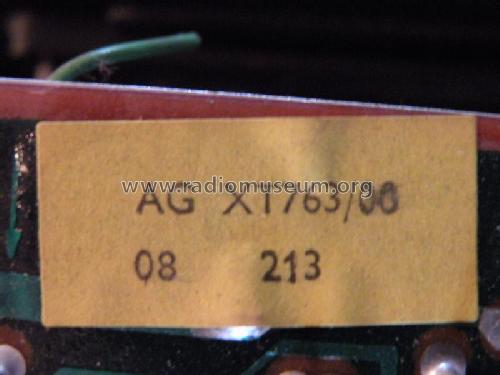

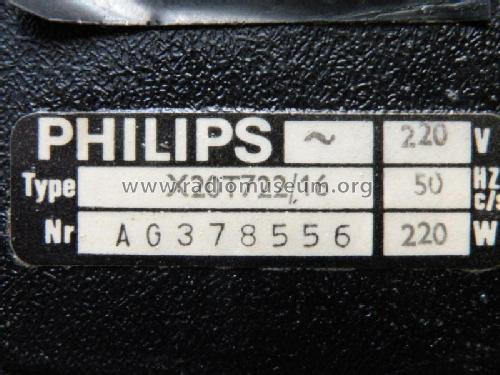

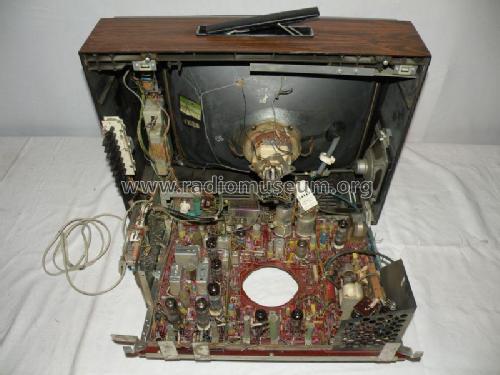

• Model: X20T722 Ch= A12N - Philips; Eindhoven tubes

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 550 x 420 x 350 mm / 21.7 x 16.5 x 13.8 inch

• Notes

• Modèle transportable, avec poignée supérieure.

• Author
• Model page created by William Fague. See "Data change" for further contributors.
