- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1972 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 103756

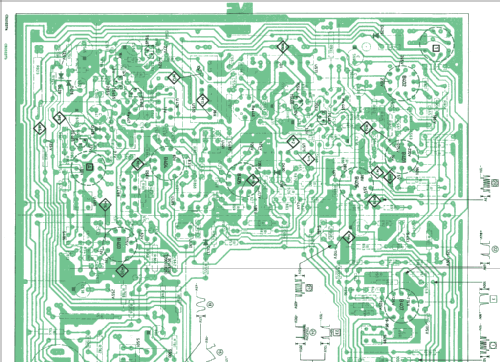

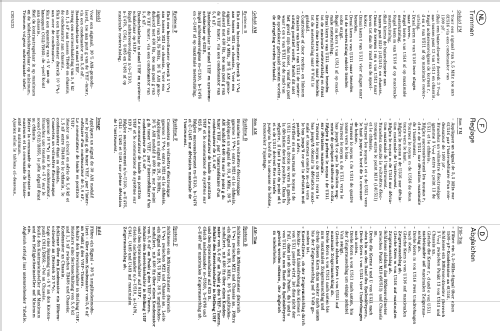

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 14
- Valves / Tubes
- PCL86 PL84 PCF201 PCF200 PCF200 PFL200 PCF80 PCF802 PL504 PY88 DY802 PCH200 PCL805 A61-120W
- Number of Transistors
- 12
- Main principle
- Superheterodyne (common); 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: X24T725 /00 - Philips; Eindhoven tubes
- Shape
- Tablemodel, low profile (big size).
- Notes
-
- Transformerless audio output stage.
- CCIR, Belgian and French standards.
- VHF (tuner 4822 210 40113): 47-68, 162-230 MHz.
- UHF (tuner 4822 210 50064): 470-890 MHz.
- Contains semiconductor diodes: 1 x BY127, 5 x OA91, 1 x OA47, 2 x OF161, 1 x OA95, 1 x OA90, 2 x BAX16.
