X25K122 /00 /05 /08 /16 /17 /67 Ch= K6
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1967
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 322876

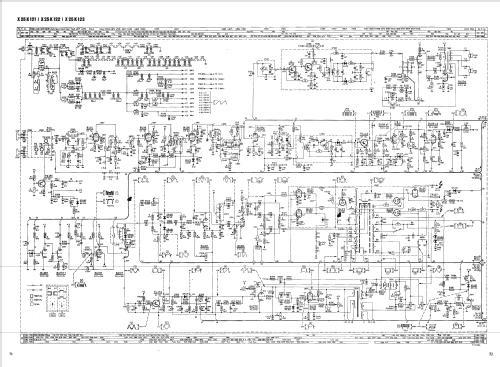

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 27
- Valves / Tubes

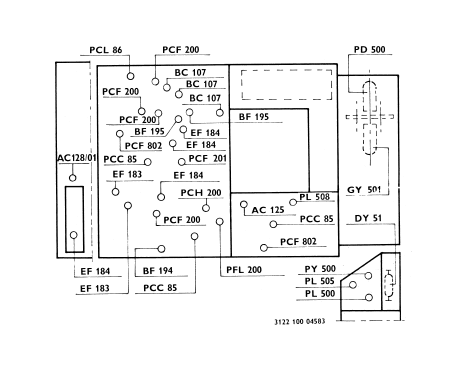

- EF184 EF183 EF183 PCF200 PFL200 PCL86 EF184 PCF201 EF184 PCF802 EF184 PCC85 PCF200 PCF200 PCF200 PCH200 PCC85 PL508 PCC85 PCF802 PL505 PL500 PY500 DY51 GY501 PD500 A63-11X
- Number of Transistors
- 12
- Main principle
- Superheterodyne (common); ZF/IF 38900/5500 kHz
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220V Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: X25K122 /00 /05 /08 /16 /17 /67 Ch= K6 - Philips; Eindhoven tubes
- Shape

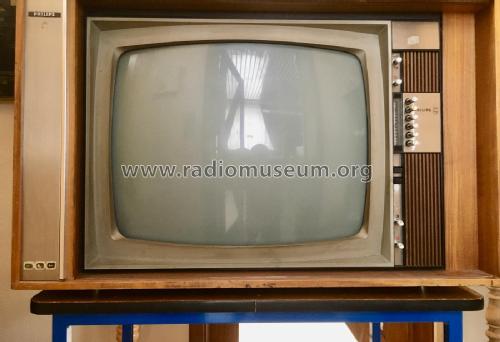

- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 710 x 550 x 570 mm / 28 x 21.7 x 22.4 inch
- Notes
-

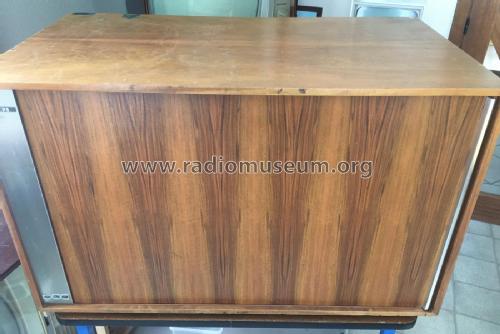

Le modèle Philips X25K122 peut être équipé d'un volet. Avec volet (mes sans pieds) les dimensions sont 855 x 540 x 650 mm.
- Net weight (2.2 lb = 1 kg)
- 54 kg / 118 lb 15.1 oz (118.943 lb)
- Price in first year of sale
- 60,000.00 BEF
- Author
- Model page created by Jacky Blaise. See "Data change" for further contributors.
