Zweikanal-Oszilloskop PM3110
Philips Radios - Deutschland
- Country
- Germany
- Manufacturer / Brand
- Philips Radios - Deutschland
- Year
- 1971 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 114057
-
- Brand: Deutsche Philips-Ges.

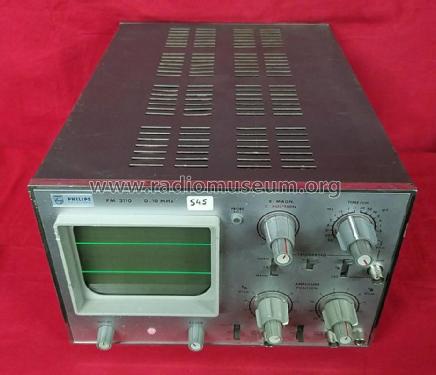

Philips PM 3110 front.
Philips PM 3110 back.
Philips PM 3110 label.

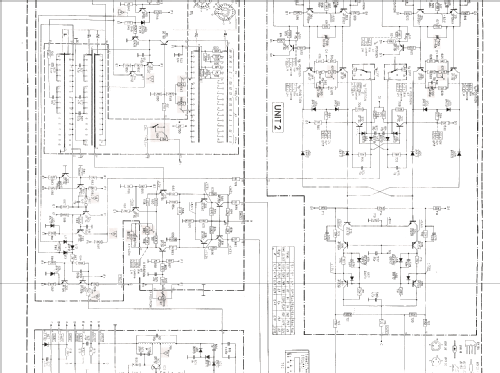

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Number of Transistors
- 52
- Semiconductors
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 110; 128; 202; 220; 238 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Zweikanal-Oszilloskop PM3110 - Philips Radios - Deutschland
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 305 x 195 x 455 mm / 12 x 7.7 x 17.9 inch
- Notes
- Zweikanal-Oszilloskop, 10 MHz Bandbreite, externer Trigger-Eingang.
- Net weight (2.2 lb = 1 kg)
- 8.5 kg / 18 lb 11.6 oz (18.722 lb)
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
