1052 S.N. up to 1/8001
Philips Australia
- Country
- Australia
- Manufacturer / Brand
- Philips Australia
- Year
- 1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 167629
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 472.5 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
- Material
- Bakelite case
- from Radiomuseum.org

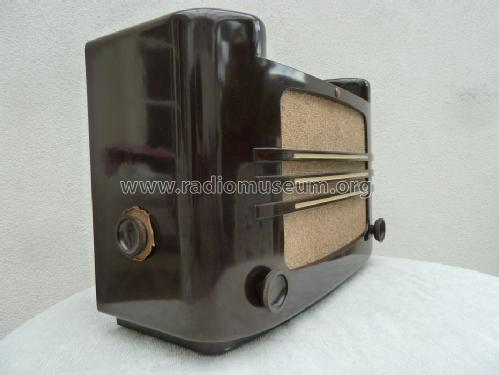

- Model: 1052 [S.N. up to 1/8001] - Philips Australia
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 19 x 12.25 x 7 inch / 483 x 311 x 178 mm
- Notes
- This radio had three separate chassis with permanent interconnecting cables making it very difficult to work on.
- Price in first year of sale
- 19.00 Aus£
- Circuit diagram reference
- Australian Official Radio Service Manual Vol. III
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
