• Country
• Australia

• Manufacturer / Brand
• Philips Australia

• Year
• 1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 170595

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6AN7 6BH5 6BD7 6M5 6V4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Radio with other functions

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org

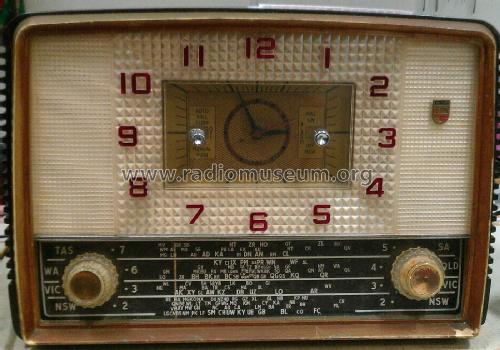

• Model: Chronoradio 155 - Philips Australia

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Notes

• The clock is a Telechron C98.

  See also Fleetwood model 1118.

  Colours available: Ivory, Burgundy & Walnut.

• Price in first year of sale
• 40.95 AUS £

• Literature/Schematics (1)
• - - Manufacturers Literature (Philips Radioplayer Service Data, Feb 1958.)

• Literature/Schematics (2)
• J.R. Publications Radio Service Handbook (R.V. Series Vol. 1, 1963, Page P11.)

• Author
• Model page created by Aglef Tröger. See "Data change" for further contributors.
