Swingalong MT4
Philips Australia
- Country
- Australia
- Manufacturer / Brand
- Philips Australia
- Year
- 1962–1965
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 163193
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 3
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 1 AF stage(s); Reflex
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Swingalong MT4 - Philips Australia
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 10 x 5 x 3.25 inch / 254 x 127 x 83 mm
- Notes
-
Philips Model MT4 "Swingalong"
Compact portable-mantel BC radio having three transistors and one diode. Housed in rugged shock-proof polystyrene cabinet in red, grey, charcoal, turquoise and primrose.
Features: tuning range, 520-1620 kC/s. Operates from one Eveready Type 276P (9V) battery. Speaker, 4" (MSP Type 50006/40A/3). (MINGAY'S PRICE SERVICE)
- Price in first year of sale
- 14.60 AUS £
- Mentioned in
- Mingay's Price Service (Feb 1963 to Feb 1965.)
- Literature/Schematics (1)

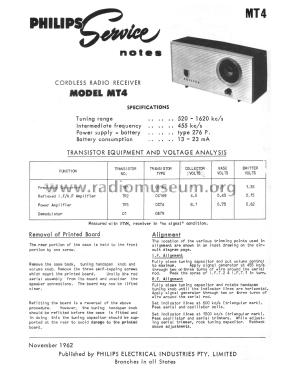

- -- Original-techn. papers. (Philips Service Notes, November 1962.)
- Literature/Schematics (2)
- J.R. Publications Transistor Radio Service Handbook (Supplement to Vol. 1, 1960, Page P2b.)
- Literature/Schematics (3)
- J.R. Publications Transistor Radio Service Handbook (A Series Handbook, Page P14.)
- Literature/Schematics (4)
- Silicon Chip, September 2017, Page 100.
- Author
- Model page created by Wolfgang Lohrie. See "Data change" for further contributors.
