• Country
• Australia

• Manufacturer / Brand
• Philips Australia

• Year
• 1957–1961

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 141286

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 6AN7 6BH5 6BD7 6M5

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage

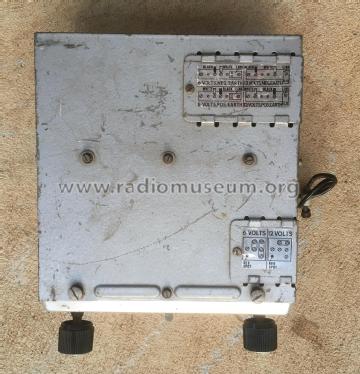

• Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: NT346V - Philips Australia

• Shape
• Chassis only or for «building in»

• Notes

• Philips NT346V Car Radio

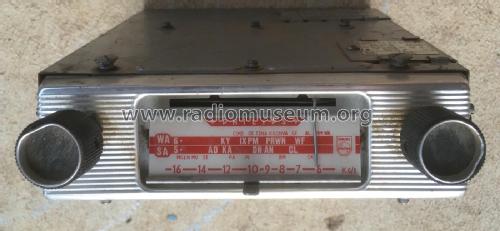

  The customer-tested car radio that has proved one of Australia's best money values. The one radio fits any make or model of car. Instant voltage changeover can be effected, irrespective of make of car or model. Its compact "matchbox height" design fits into minimum of space. Easy to read illuminated dial. permeability tuning ensures high stability and "drift-free" station holding under the roughest road conditions. (FROM MINGAY'S PRICE SERVICE)

• Price in first year of sale
• 39.90 AUS £

• Mentioned in
• Mingay's Price Service (May 1958 to Aug 1961.)

• Literature/Schematics (1)
• -- Original-techn. papers. (Philips Car Radio Service Data, March 1958.)

• Literature/Schematics (2)
• J.R. Publications Car Radio Service Handbook (Vol. 1, Page P3.)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
