• Country
• Australia

• Manufacturer / Brand
• Philips Australia

• Year
• 1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 168508

• Number of Tubes
• 6

• Valves / Tubes
• 6U7G EK2G EBF2 EL3NG EM3 5Y3G

• Main principle
• Superhet with RF-stage; ZF/IF 472.5 kHz; 1 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Bakelite case

• from Radiomuseum.org

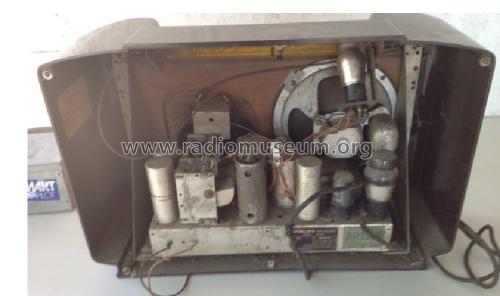

• Model: Radioplayer 2252 - Philips Australia

• Shape
• Tablemodel, low profile (big size).

• Price in first year of sale
• 22.00 Aus£

• Circuit diagram reference
• Australian Official Radio Service Manual Vol. IV

• Literature/Schematics (1)
• Radio & Electrical Retailer, Australia (2/6/39 Also in Mingay's Radio Diagram & I.F. Index)

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
