• Country
• Spain

• Manufacturer / Brand
• Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes, SELEZ; Madrid, Barcelona

• Year
• 1966/1967

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 199845

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• AF114 AF115 AF116 AF116 AF116 AC127 AC128 AC128 AC128 AC127 AA119 OA79

• Main principle
• Superheterodyne (common); ZF/IF 452/1077 kHz; 3 AF stage(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Batteries / addl. power jack / 4 x 1,5 / 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: AM FM 10 Transistor 30-RL-363 - Philips Ibérica, COPRESA,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 280 x 122.5 x 58.3 mm / 11 x 4.8 x 2.3 inch

• Notes

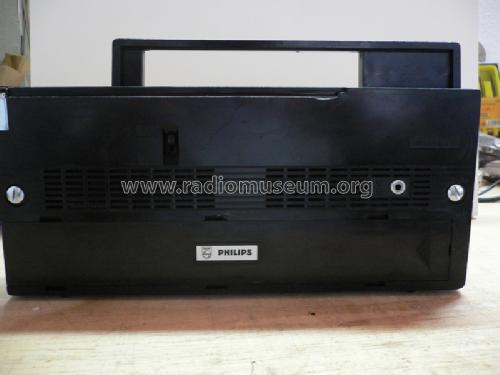

• Radio transistor portátil, con asa fija para transporte, gran dial transparente, funciona sólo a pilas o fuente externa a 6 V. La rejilla del altavoz es metálica. Tiene toma de auriculares.

  AM: 185 - 500 m.
  FM: 87,5 - 104 MHz.

  Transistor AF115 puede ser sustituido por AF114
  Transistor AF116 puede ser sustituido por AF115 o por AF114

• Net weight (2.2 lb = 1 kg)
• 1.2 kg / 2 lb 10.3 oz (2.643 lb)

• Price in first year of sale
• 2,990.00 ESP

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Juan Bautista Ruiz Pérez. See "Data change" for further contributors.
