- Country
- Spain
- Manufacturer / Brand
- Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes, SELEZ; Madrid, Barcelona
- Year
- 1978
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 206787
Foto del manual

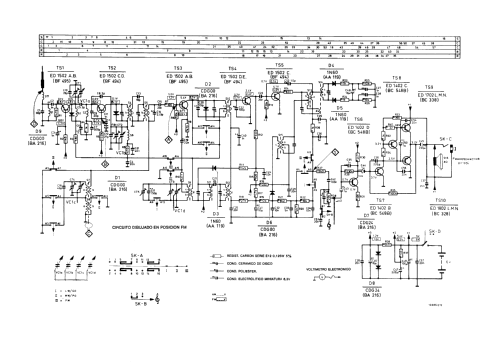

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 10
- Main principle
- Superheterodyne (common); ZF/IF 468/10700 kHz; 3 AF stage(s)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Dry Batteries / 4x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 0.35 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 90-AL-280/00 - Philips Ibérica, COPRESA,
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Notes
- FM: 87,5 - 104 MHz.
Listado un único semiconductor por tipo.
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
