• Country
• Spain

• Manufacturer / Brand
• Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes, SELEZ; Madrid, Barcelona

• Year
• 1980

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 207172

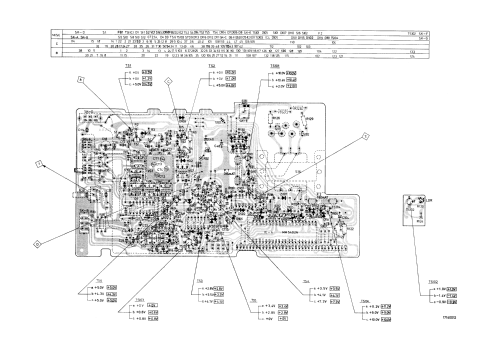

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• ED1402 ED1502 ED1602 ED1702 ED1802 TBA570 CD4016 CD4069 MM5402 1N60 1N4001 BA317 BZX79

• Main principle
• Superheterodyne (common); ZF/IF 468/10700 kHz

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 110; 220 & for clock 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 90-AS-390/40 - Philips Ibérica, COPRESA,

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Notes
• Pila de 9 V. Para mantenimiento hora.
  Listado un único semiconductor por tipo.
  Clock needs a 9 Volt battery for backup.
  Each semiconductor type listed once.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
