B3E03A /00C /00K

• Country
• Spain

• Manufacturer / Brand
• Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes, SELEZ; Madrid, Barcelona

• Year
• 1960/1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 176909

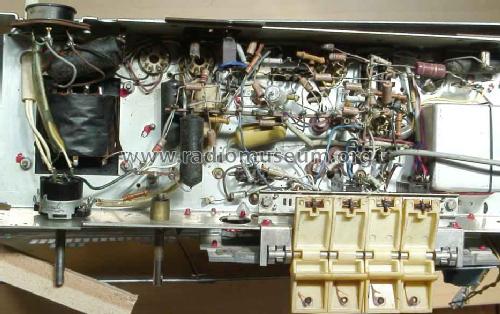

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 UABC80 UL84 UY85

• Main principle
• Superheterodyne (common); ZF/IF 470/10700 kHz; 2 AF stage(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 150; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Bakelite case

• from Radiomuseum.org
• Model: B3E03A /00C /00K - Philips Ibérica, COPRESA,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 360 x 200 x 190 mm / 14.2 x 7.9 x 7.5 inch

• Notes

• AM: 185 - 580 m.
  OC: 16 - 50 m.
  FM: 87,5 - 100 MHz. Utiliza el módulo de FM tipo ZB A3 418 12

  Este modelo es idéntico al Askar AE-1320-A.

  Variantes /00C y /00K se refieren al color del mueble desconociéndose la correspondencia.

• Net weight (2.2 lb = 1 kg)
• 4.624 kg / 10 lb 3 oz (10.185 lb)

• Source of data
• -- Original-techn. papers.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Documents regarding this model

• Author
• Model page created by Jordi Cardona Serra. See "Data change" for further contributors.
