• Country
• Spain

• Manufacturer / Brand
• Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes, SELEZ; Madrid, Barcelona

• Year
• 1977

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 189018

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 19

• Semiconductors
• BC149 BC148 BC148 BC148 BC148 BC149 BC148 BC148 BC148 AC187 AC188 BC158 AC187 BC148 AC188 AC188 AC187 BC147 BD135

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 110-240; 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

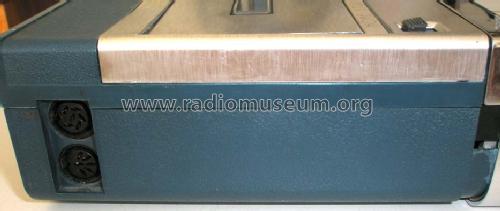

• Model: Home Study Recorder LFD-530-Q /19 - Philips Ibérica, COPRESA,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 252 x 65 x 187 mm / 9.9 x 2.6 x 7.4 inch

• Net weight (2.2 lb = 1 kg)
• 2.140 kg / 4 lb 11.4 oz (4.714 lb)

• Mentioned in
• -- Schematic

• Author
• Model page created by Bernardo Diaz. See "Data change" for further contributors.
