• Country
• Spain

• Manufacturer / Brand
• Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes, SELEZ; Madrid, Barcelona

• Year
• 1976

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 226003

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 32

• Semiconductors
• BC549 BC548 BC338 BD135 BA316 BA317 BA318 BY164 BAX18 BZX79 BZY88

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

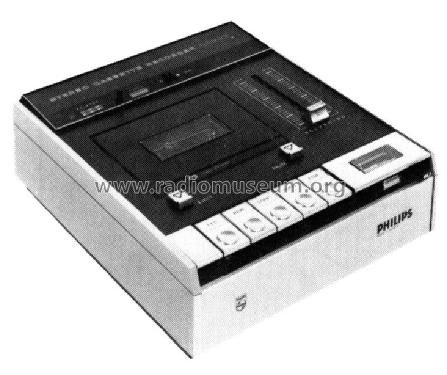

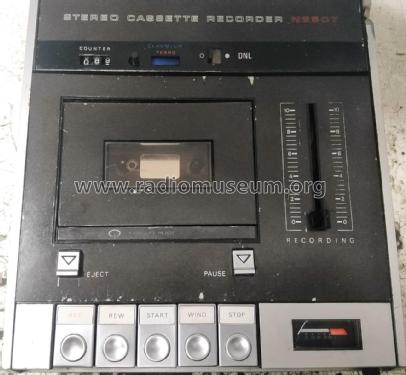

• Model: N-2507/00 - Philips Ibérica, COPRESA,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 203 x 80 x 215 mm / 8 x 3.1 x 8.5 inch

• Notes

• Listado un único semiconductor por tipo.

  Each semiconductor type liste once.

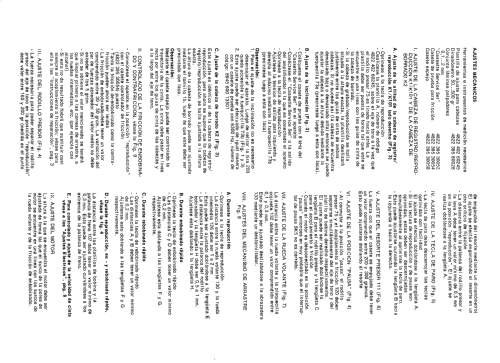

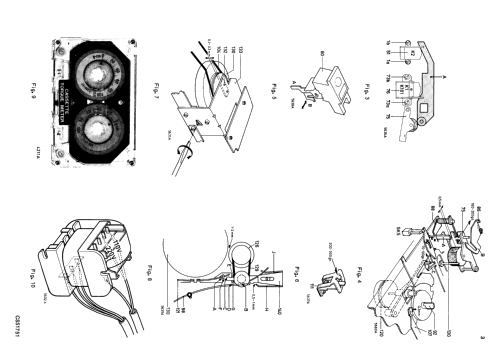

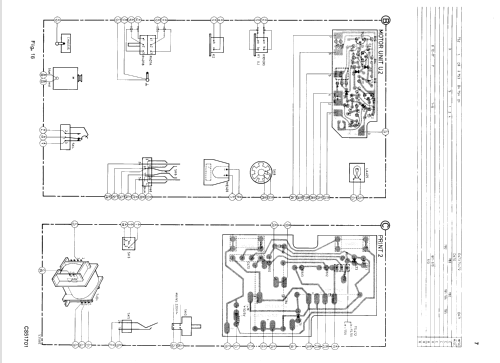

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
