Portable Receiver 040 90AL040 /00 /01 /28 /40 /45

Philips; Eindhoven (tubes international!); Miniwatt

Data
Forum
Pictures
Collections

  • Year
  • 1980 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 272801

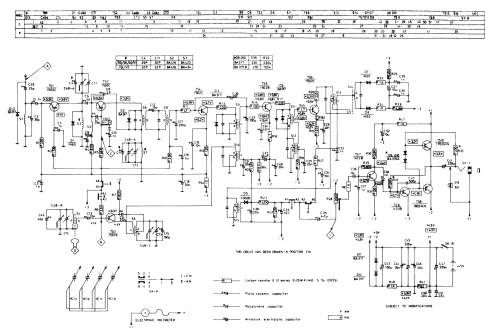

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Main principle
  • Superheterodyne (common); ZF/IF 468/10700 kHz
  • Tuned circuits
  • 5 AM circuit(s)     9 FM circuit(s)
  • Wave bands
  • Long Wave and FM or UHF
  • Power type and voltage
  • Dry Batteries / AA: 3 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.7 cm = 2.2 inch
  • Power out
  • 0.2 W (unknown quality)
  • Material
  • Bakelite or Plastics (type unknown)
  • from Radiomuseum.org
  • Model: Portable Receiver 040 90AL040 /00 /01 /28 /40 /45 - Philips; Eindhoven tubes
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 144 x 80 x 30 mm / 5.7 x 3.1 x 1.2 inch
  • Notes

  • The Portable Receiver 040 (90AL040) has two wavebands: FM from 87.5 to 104.8 MHz and LW from 150 to 255 kHz. The speaker impedance is 8 ohms, there is a 3.5mm jack for external headphones, also 8 ohms.

    There are minor differences between versions /00 /28 /40 and /51 on one hand, and versions /01 and /45 on the other hand. See schematic for details.

    The present manual doesn't carry a brand name: it can apply to multiple sub-brands (e.g. Radiola, Siera etc). Please create the according models before uploading images.

    See also Philips Hongkong 90AL040 /51.
