• Country
• Japan

• Manufacturer / Brand
• Philips Electronics Japan, Ltd.; Tokyo

• Year
• 1980 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 275121

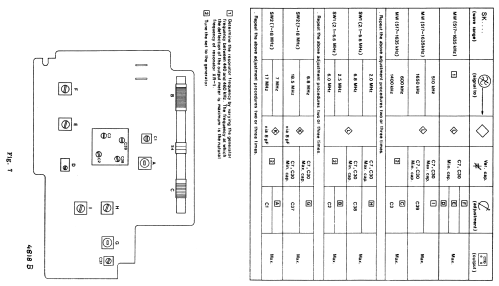

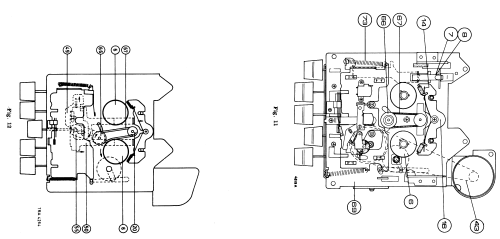

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 15

• Semiconductors
• 2SC829 2SC829 2SA101 2SA101 2SB173 2SB173 2SB175 2SB175 2SB175 2SB175 2SC828 2SB324 2SB324 2SB324 2SB324

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 117; 230 / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 0.8 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org
• Model: Radiorecorder 22RR425 /00R - Philips Electronics Japan, Ltd

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 280 x 80 x 225 mm / 11 x 3.1 x 8.9 inch

• Notes

• Radiorecorder mit AM-Radio.

• Net weight (2.2 lb = 1 kg)
• 3 kg / 6 lb 9.7 oz (6.608 lb)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
