- Country
- United States of America (USA)
- Manufacturer / Brand
- Philmore Mfg. Co. - Ajax Products Co.; New York, NY
- Year
- 1948 ??
- Category
- Kit (Parts plus instruction) or building instructions only
- Radiomuseum.org ID
- 262342

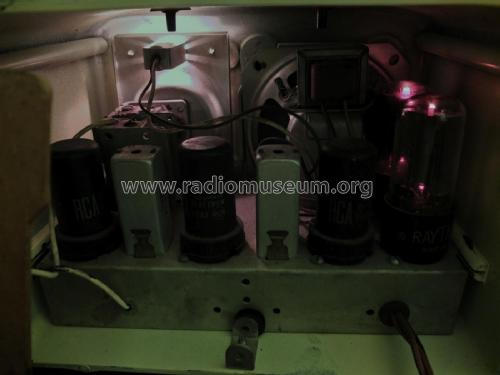

Philmore Mfg. Co. New York - Model 100-1 - 1
Philmore Mfg. Co. New York - Model 100-1 - 2
Philmore Mfg. Co. New York - Model 100-1 - 3
Philmore Mfg. Co. New York - Model 100-1 - 4
Philmore Mfg. Co. New York - Model 100-1 - 5
Philmore Mfg. Co. New York - Model 100-1 - 6
Philmore Mfg. Co. New York - Model 100-1 - 7
Philmore Mfg. Co. New York - Model 100-1 - 8
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 110 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
- Material
- Bakelite case
- from Radiomuseum.org
- Model: 100-1 - Philmore Mfg. Co. - Ajax
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 220 x 150 x 150 mm / 8.7 x 5.9 x 5.9 inch
- Notes
-
Built-in loop antenna.
- Net weight (2.2 lb = 1 kg)
- 1.9 kg / 4 lb 3 oz (4.185 lb)
- Author
- Model page created by Peter Kahlich. See "Data change" for further contributors.
